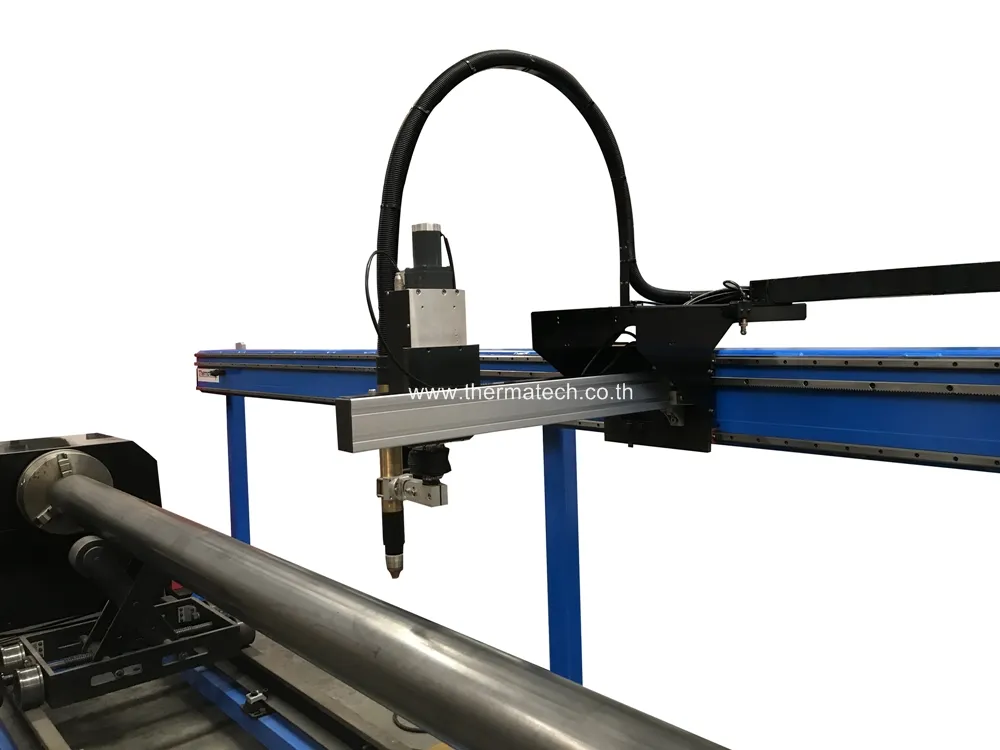

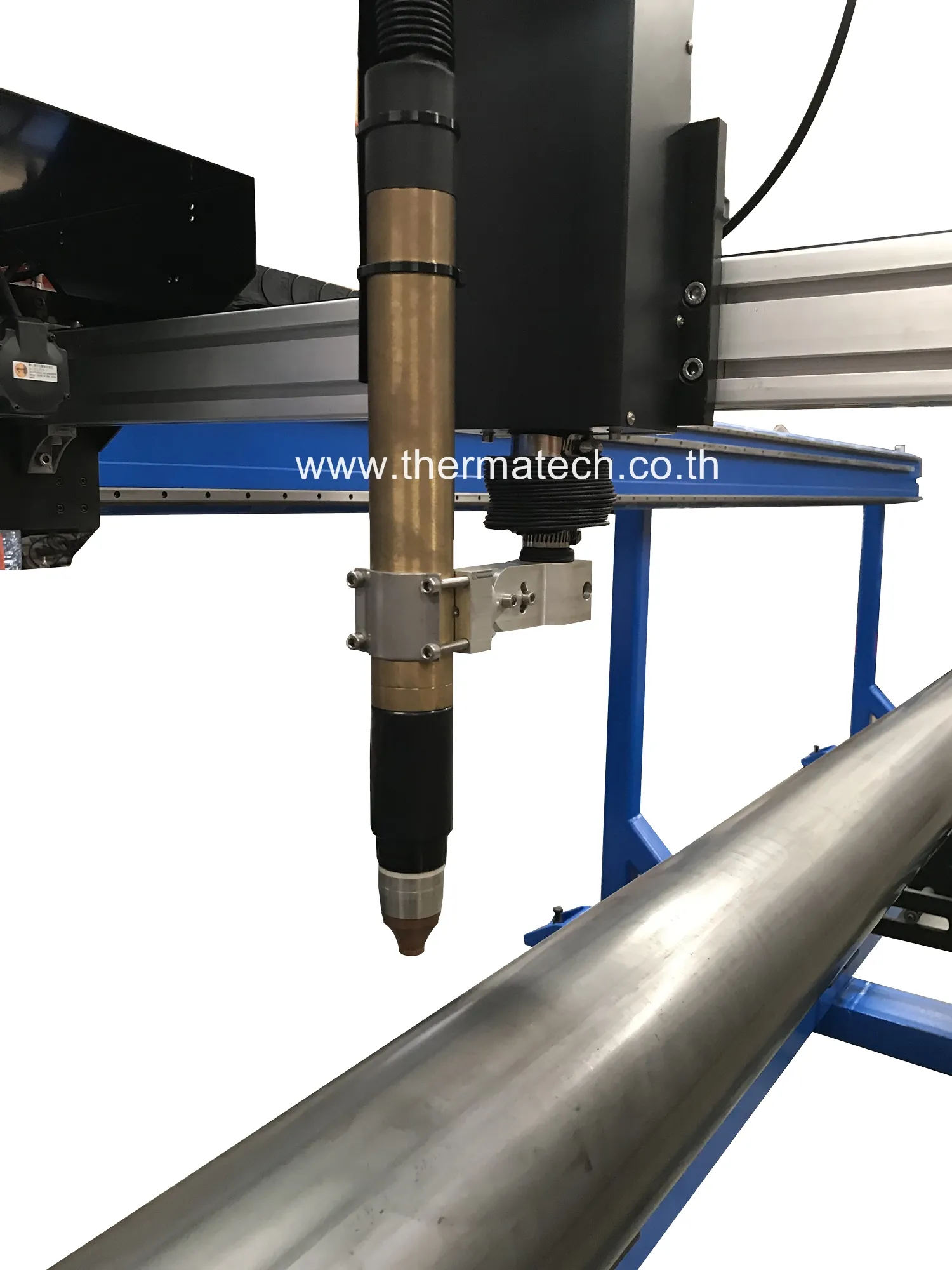

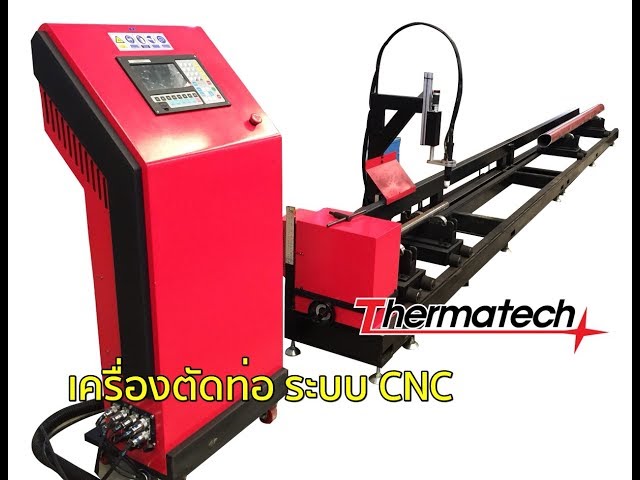

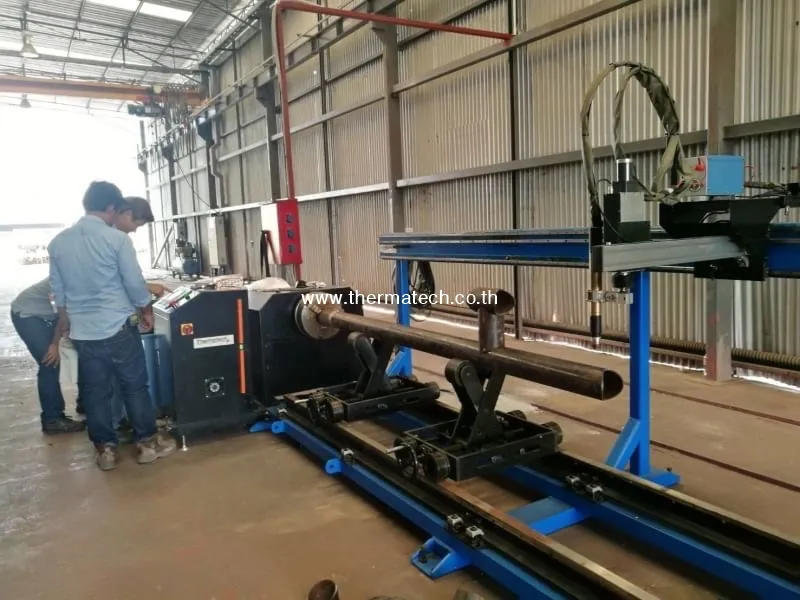

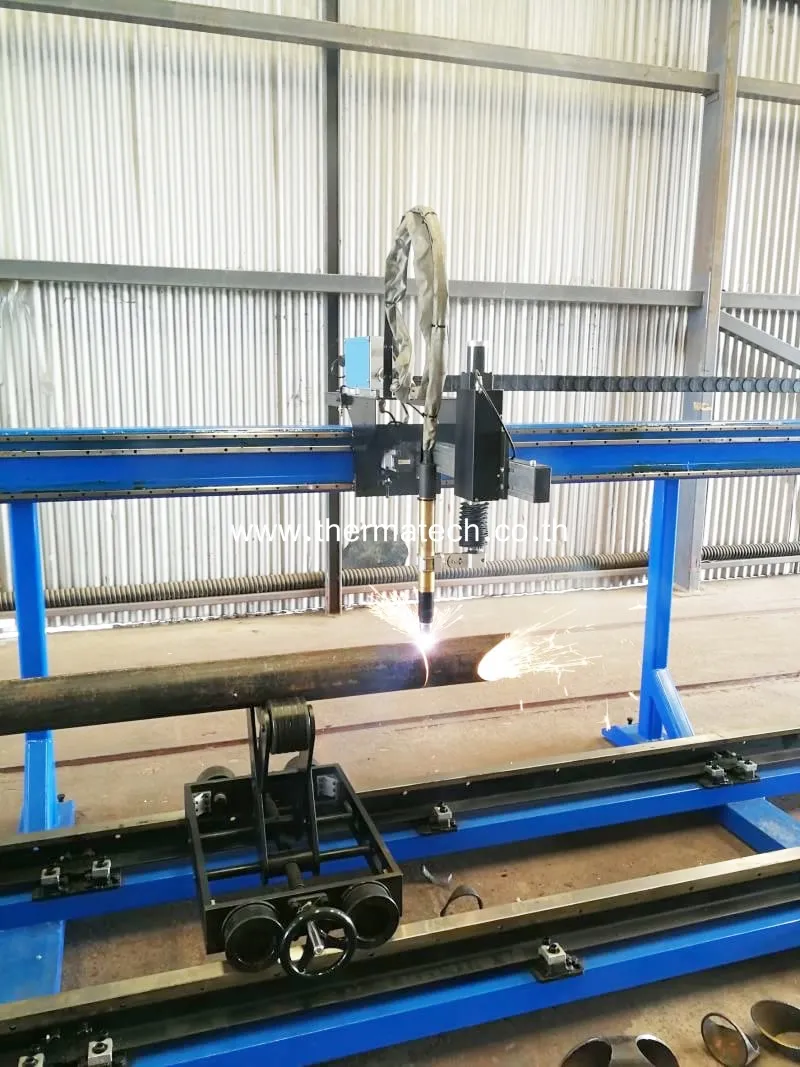

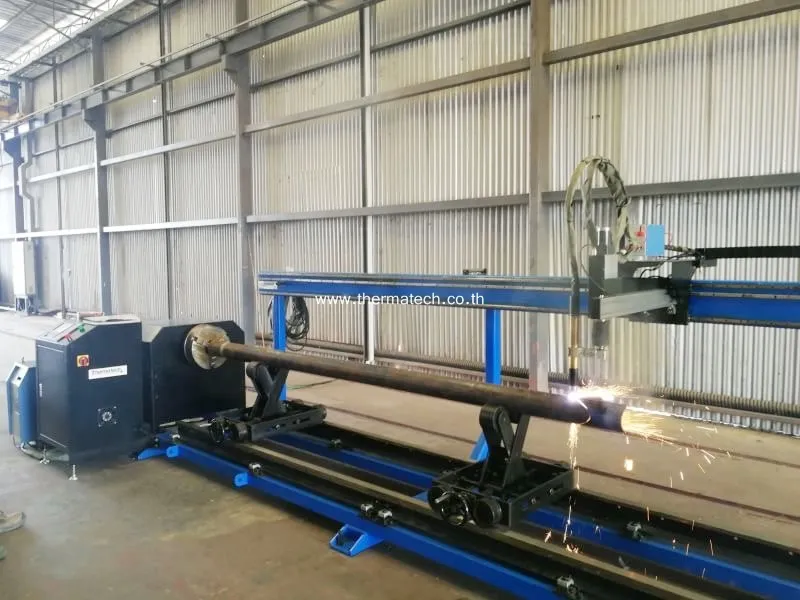

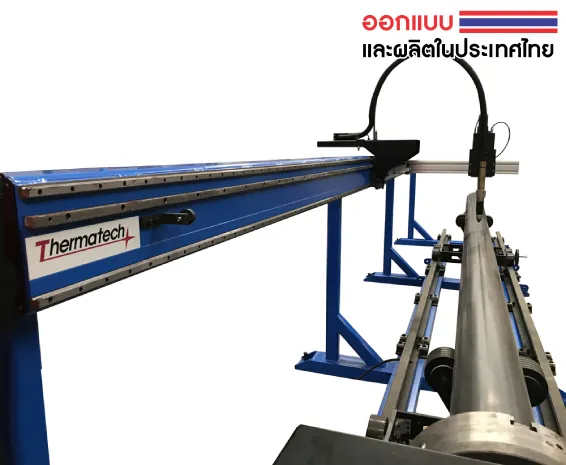

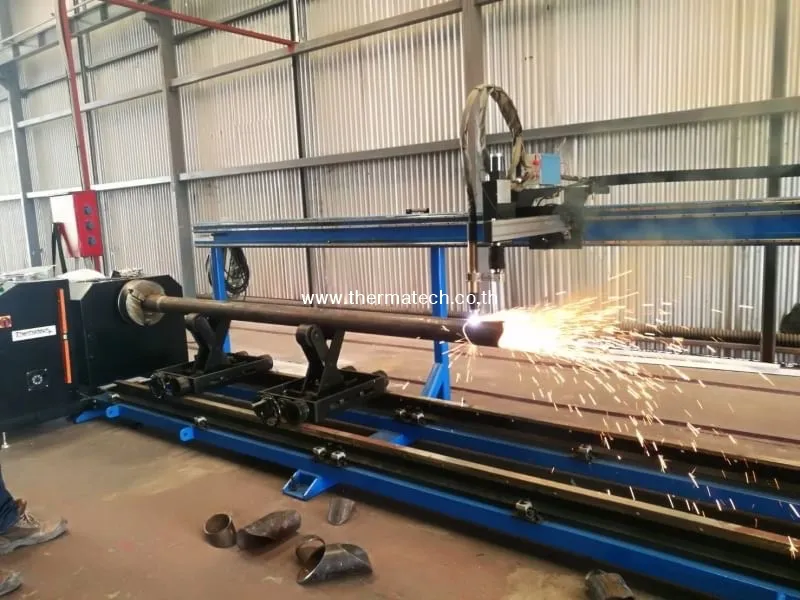

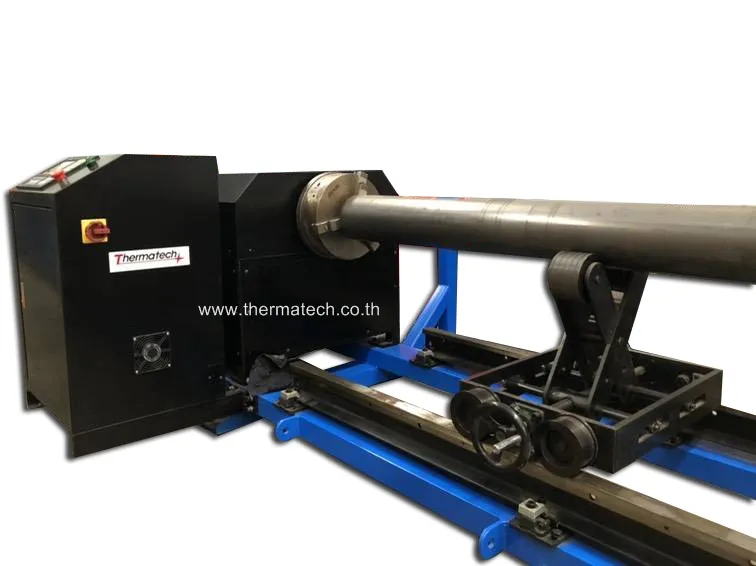

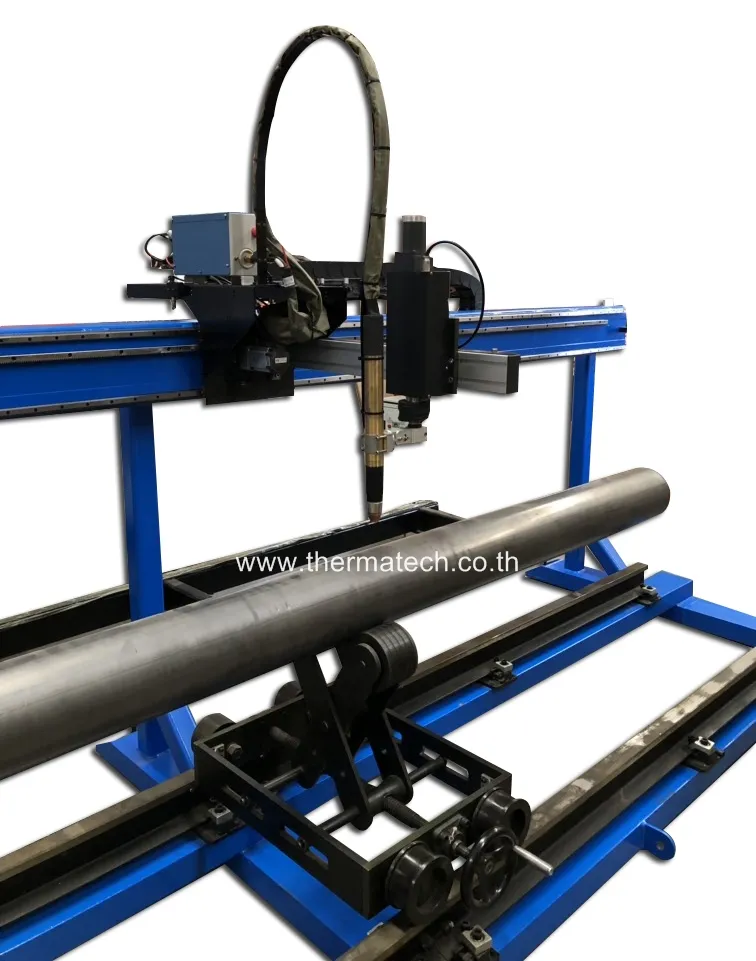

เครื่องตัดท่อ CNC Pipe Cutting Machine รุ่น TMP 300x6 จากบริษัทเทอร์มาเทค
Machine Specification
| Detail | TMP 300x6 |
| Working Range | 50-300 mm. (Diameter) x 6000 mm. (Length) |
| Track Length | 6,500 mm. |
| Overall Width | 2,200 mm. |
| Cutting Thickness | 3-12 mm. (Plasma Cutting) |
| X servo driver (Rotation) | Panasonics servo Driver 750 W |
| Y servo driver (6M direction) | Panasonics Servo Driver 400 W |
| Max Cutting Speed | 6,000 mm./min. |
| Position Accuracy | ±0.1/3,000 mm. |
| Chuck Rotation RPM (X axis) | 15 RPM |
| Repeatability Accuracy | ± 0.1 mm. |
| Roller Support | 2 sets |
| Input power | 220 V 1 Phase 50 Hz for CNC pipe cutting machine 380 V 3 Phase 50 Hz for Plasma cutting System |
